Place of Origin: | China |
---|---|

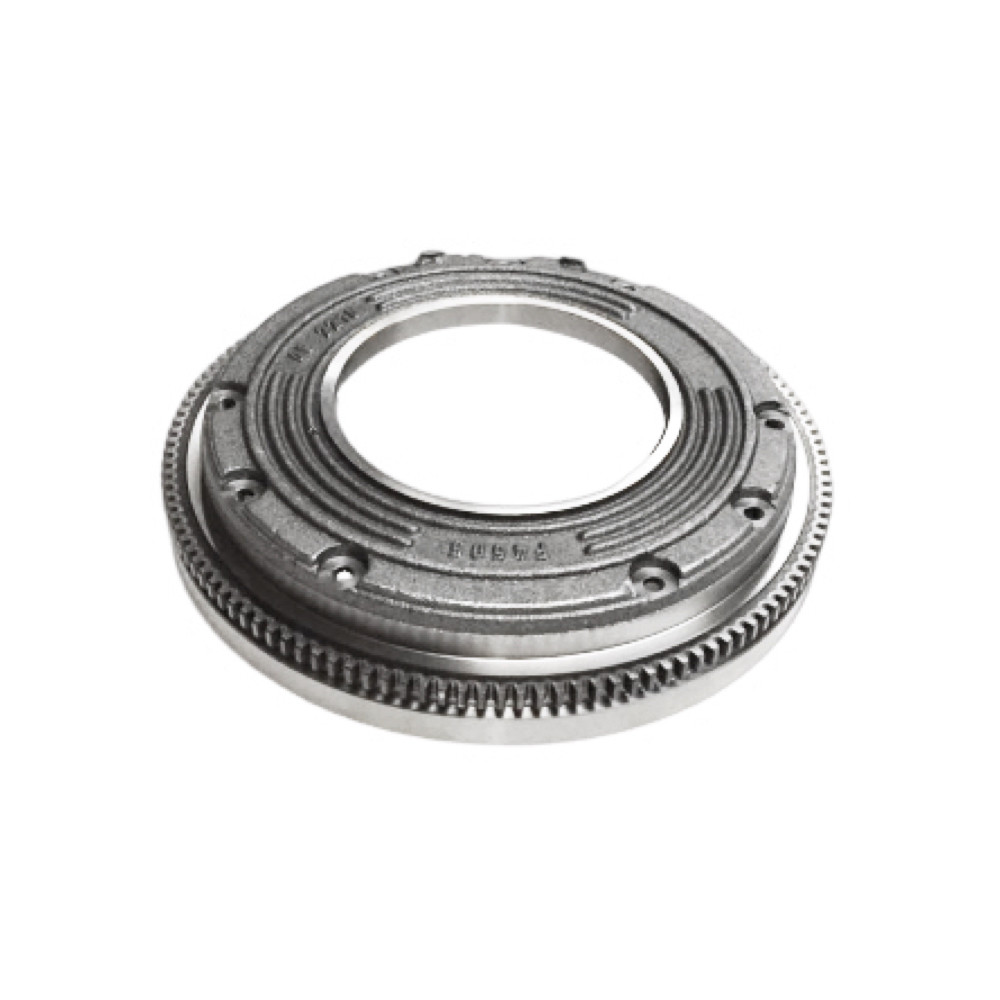

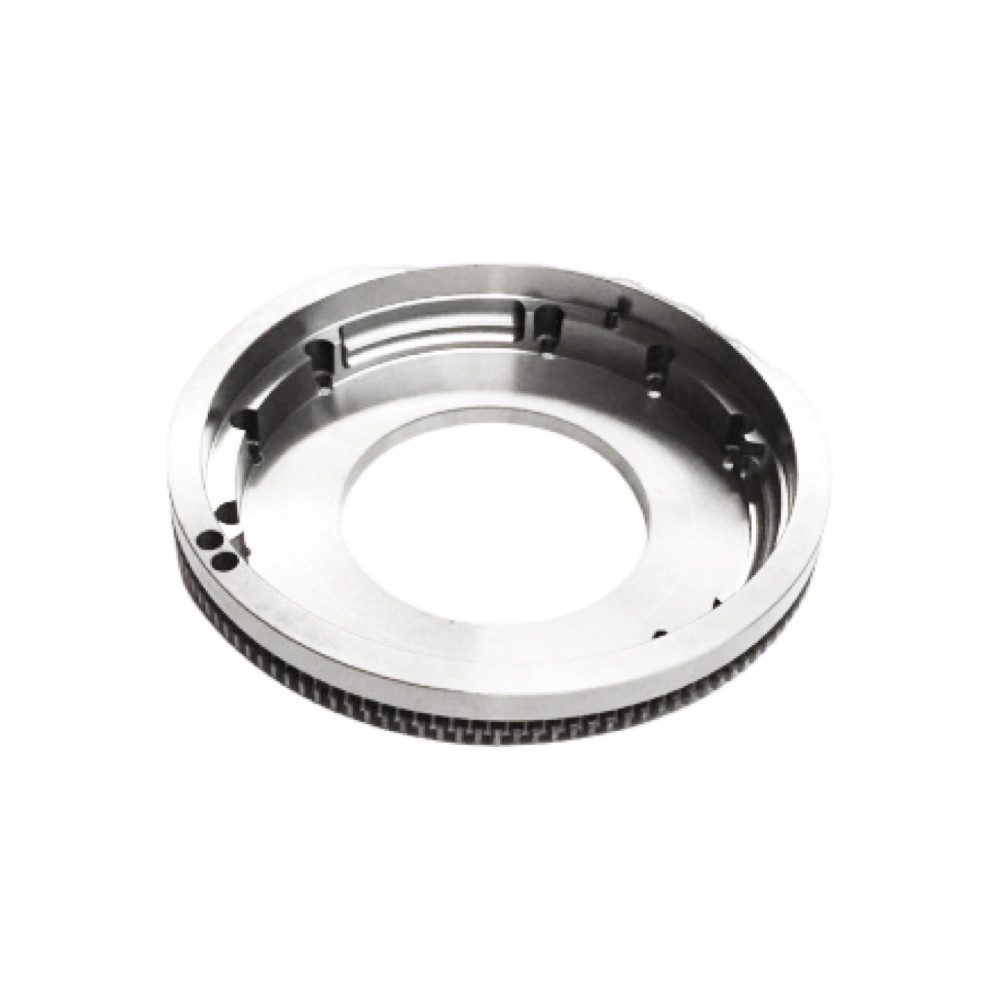

Model Number: | VOLKSWAGEN/VW Beetle 125 teeth cast iron flywheel |
Minimum Order Quantity: | Negotiation |
Price: | Negotiation |
Packaging Details: | Standard Packaging |
Payment Terms: | L/C,T/T,etc. |
OE No.: | 027105271R | Model: | VOLKSWAGEN/VW Beetle 125 Teeth Cast Iron Flywheel |
---|---|---|---|
Height: | 54.5 | Material: | Aluminum |
Teeth: | 125 | Outer Diameter: | 369.5 |
High Light: | Flywheel VW Beetle Cast Iron,125 Teeth Flywheel VW Beetle,027105271R |
Description
Please click to view Flywheel alog!.pdf
1. The flywheel product is made of standard HT250 material, the hardness of the matrix reaches 170-200HB, the ring gear part is made of standard 45# alloy steel, and the high-frequency quenching process is adopted. The hardness of the teeth can reach 48-58HRC, which makes the product more heat-resistant and wear-resistant. more durable.
2. Improved Clutch Performance: The flywheel is responsible for transmitting power from the engine to the transmission through the clutch. A well-designed flywheel can improve the performance of the clutch, providing a smoother engagement and disengagement and reducing wear on the clutch components.
3. The inspection adopts 3-D Measuring/Metallurgical Micro-test/Hardness test/Tension test and other equipment to ensure that there will be no defective products in the factory.
4. Export products are made of high-strength five-layer A-grade cartons, painted with anti-rust oil on the outside, and covered with anti-rust sealed bags to ensure that the products will not be rusted due to transportation problems.
Details
Teeth | 125 |
For Coupling Size(mm) | 210 |
Outer Diameter | 269.5 |
Inner Diameter(mm) | 132.1 |
Height | 54.5 |
Clutch Pitch Cride(mm) | 219 |
Crafts
Machining
Drilling Injection Holes
Dynamic Balance
Mark
Package
Inspection
Tension Test
Metallurgical Micro-Test
Hardness Test
3D Measuring
