Place of Origin: | China |
---|---|

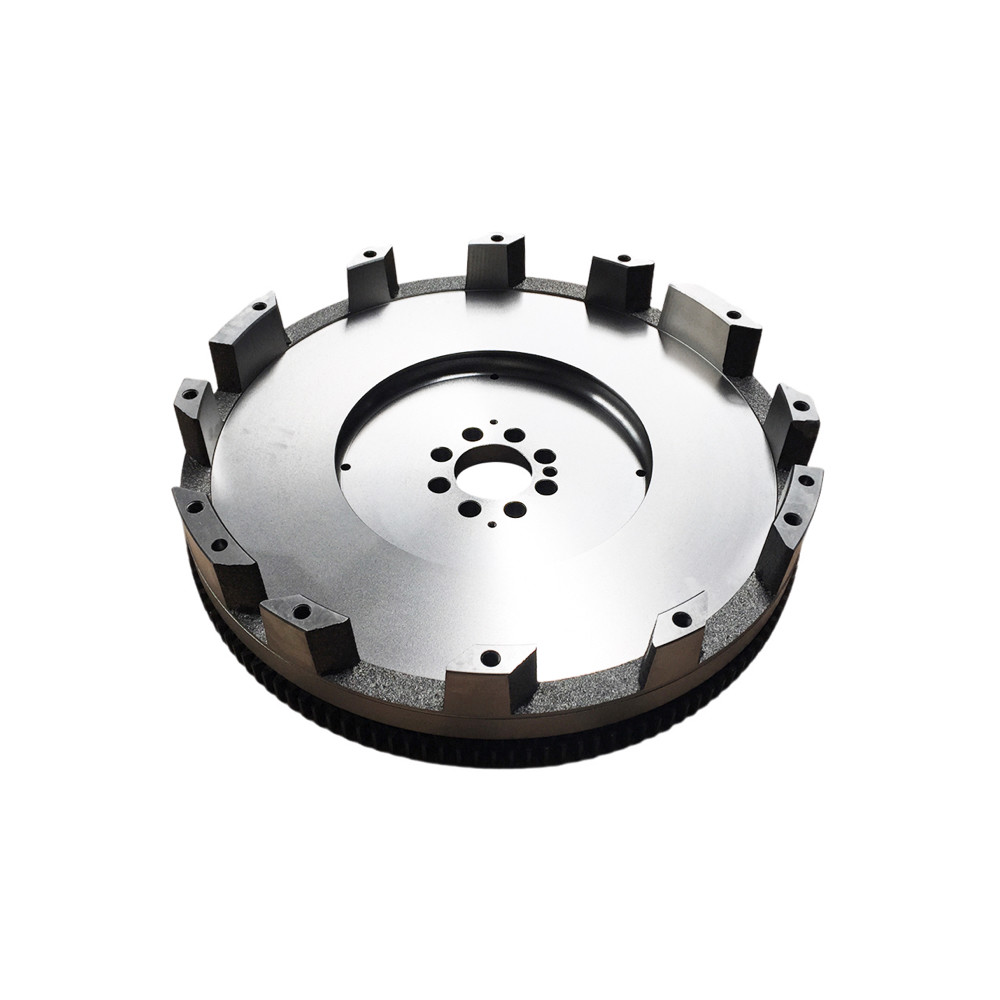

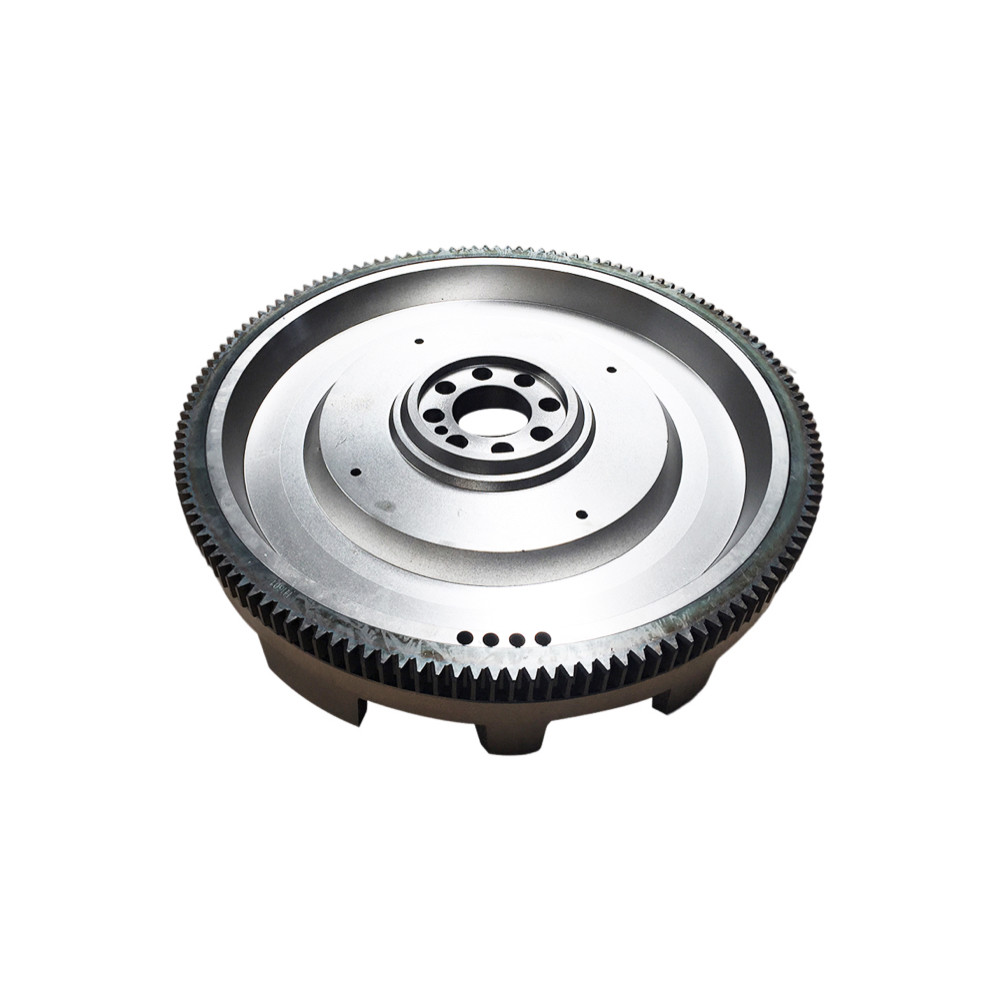

Model Number: | HINO/EK100/137 teeth cast iron flywheel/Japanese heavy truck flywheel |
Minimum Order Quantity: | Negotiation |
Price: | Negotiation |
Packaging Details: | Standard Packaging |
Payment Terms: | L/C,T/T,etc. |
OE No.: | 13450-2414/13450-1203 | Model: | HINO/EK100/137 Teeth Cast Iron Flywheel/Japanese Heavy Truck Flywheel |
---|---|---|---|
Height: | 107.5 | Material: | Cast Iron |
Teeth: | 137 | Outer Diameter: | 486 |
High Light: | EK100 Flywheel Assembly,Flywheel Assembly 137 Teeth,13450-1203 |
Description
Please click to view Flywheel alog!.pdf
1. The flywheel product is made of standard HT250 material, the hardness of the matrix reaches 170-200HB, the ring gear part is made of standard 45# alloy steel, and the high-frequency quenching process is adopted. The hardness of the teeth can reach 48-58HRC, which makes the product more heat-resistant and wear-resistant. more durable.
2. Our company uses fully automatic CNC machine tools, machining centers, and dynamic balancing equipment in the processing process to ensure that the processing accuracy of the product is better, and it can reach the dimensional accuracy of the original car factory, so that the sound of the product is smaller and more stable when it is used. .
3. The inspection adopts 3-D Measuring/Metallurgical Micro-test/Hardness test/Tension test and other equipment to ensure that there will be no defective products in the factory.
4. Export products are made of high-strength five-layer A-grade cartons, painted with anti-rust oil on the outside, and covered with anti-rust sealed bags to ensure that the products will not be rusted due to transportation problems.
Details
Teeth | 137 |
For Coupling Size(mm) | 430 |
Clutch Holes&Size (mm) | 8-Φ17 |
Outer Diameter | 486 |
Inner Diameter(mm) | 62 |
Height | 107.5 |
Pitch Cride (mm) | 92 |
Clutch Pitch Cride(mm) | 456 |
FAQ
1. What are car flywheels made of?
Car flywheels are typically made of materials such as steel or aluminum, to maximize their energy storage capacity and durability.
2. How do car flywheels work?
Car flywheels work by storing energy in the form of rotational momentum and transmitting power from the engine to the transmission through the clutch.
Crafts
Machining
Drilling Injection Holes
Dynamic Balance
Mark
Package
Inspection
Tension Test
Metallurgical Micro-Test
Hardness Test
3D Measuring
