Place of Origin: | China |
---|---|

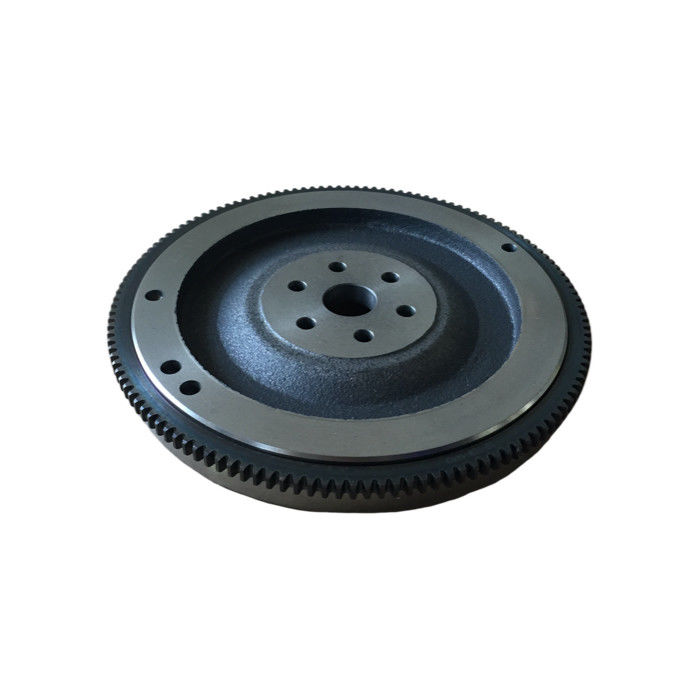

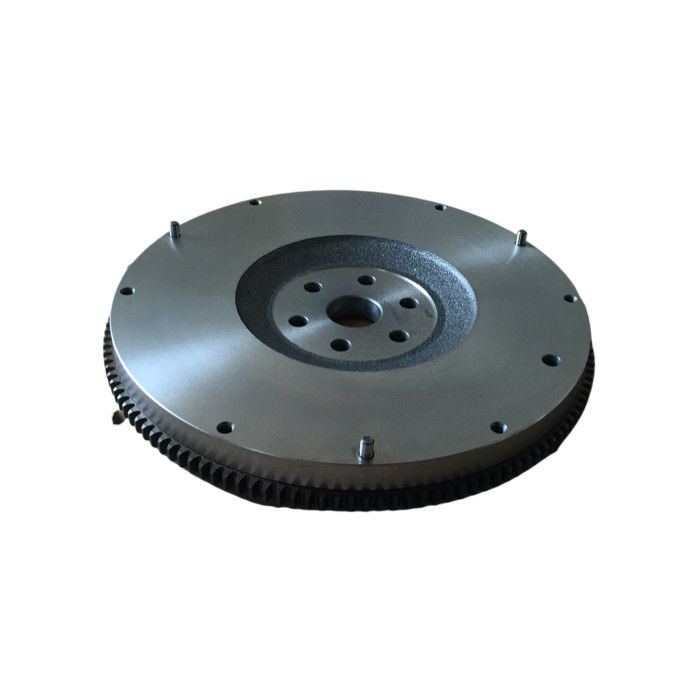

Model Number: | Mazda;B2300/132 teeth cast iron flywheel |
Minimum Order Quantity: | Negotiation |
Price: | Negotiation |
Packaging Details: | Standard Packaging |
Payment Terms: | L/C,T/T,etc. |
OE No.: | FW167705/LFW137 | Model: | Mazda ;B2300/132 Teeth Cast Iron Flywheel |
---|---|---|---|
Height: | 30 | Material: | Cast Iron |
Teeth: | 132 | Outer Diameter: | 286.3 |
Highlight: | 132 Teeth MAZDA B2300 Flywheel,MAZDA B2300 Flywheel,LFW137 |
Description
Please click to view Flywheel alog!.pdf
1. The flywheel product is made of standard HT250 material, the hardness of the matrix reaches 170-200HB, the ring gear part is made of standard 45# alloy steel, and the high-frequency quenching process is adopted. The hardness of the teeth can reach 48-58HRC, which makes the product more heat-resistant and wear-resistant. more durable.
2. High-performance and racing vehicles often employ lightweight flywheels made from materials like aluminum or carbon fiber to reduce rotational inertia and improve engine response.
3. The flywheel's size and weight can impact the vehicle's overall performance, including acceleration, fuel efficiency, and drivability.
4. Export products are made of high-strength five-layer A-grade cartons, painted with anti-rust oil on the outside, and covered with anti-rust sealed bags to ensure that the products will not be rusted due to transportation problems.
Principle
When starting a car, the gear on the starter motor meshes with the ring gear on the starter flywheel and drives the flywheel to rotate. Since the flywheel is installed on the engine shaft, it drives the engine to rotate and start the car.
Details
Teeth | 132 |
For Coupling Size(mm) | 240 |
Clutch Holes&Size (mm) | 6-Φ10.8mm |
Outer Diameter | 286.3 |
Inner Diameter(mm) | 32 |
Height | 30 |
Pitch Cride (mm) | 70 |
Clutch Pitch Cride(mm) | 260.4 |
Crafts
Machining
Drilling Injection Holes
Dynamic Balance
Mark
Package
Inspection
Tension Test
Metallurgical Micro-Test
Hardness Test
3D Measuring
