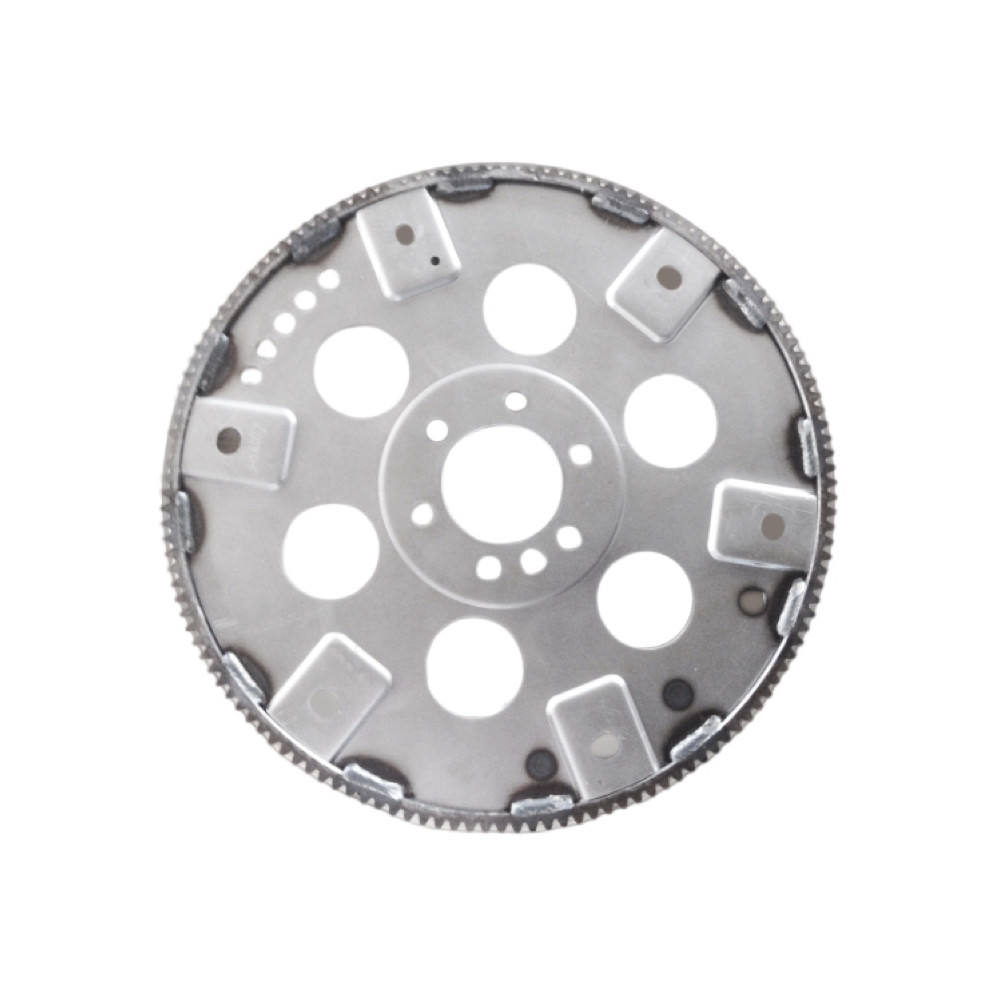

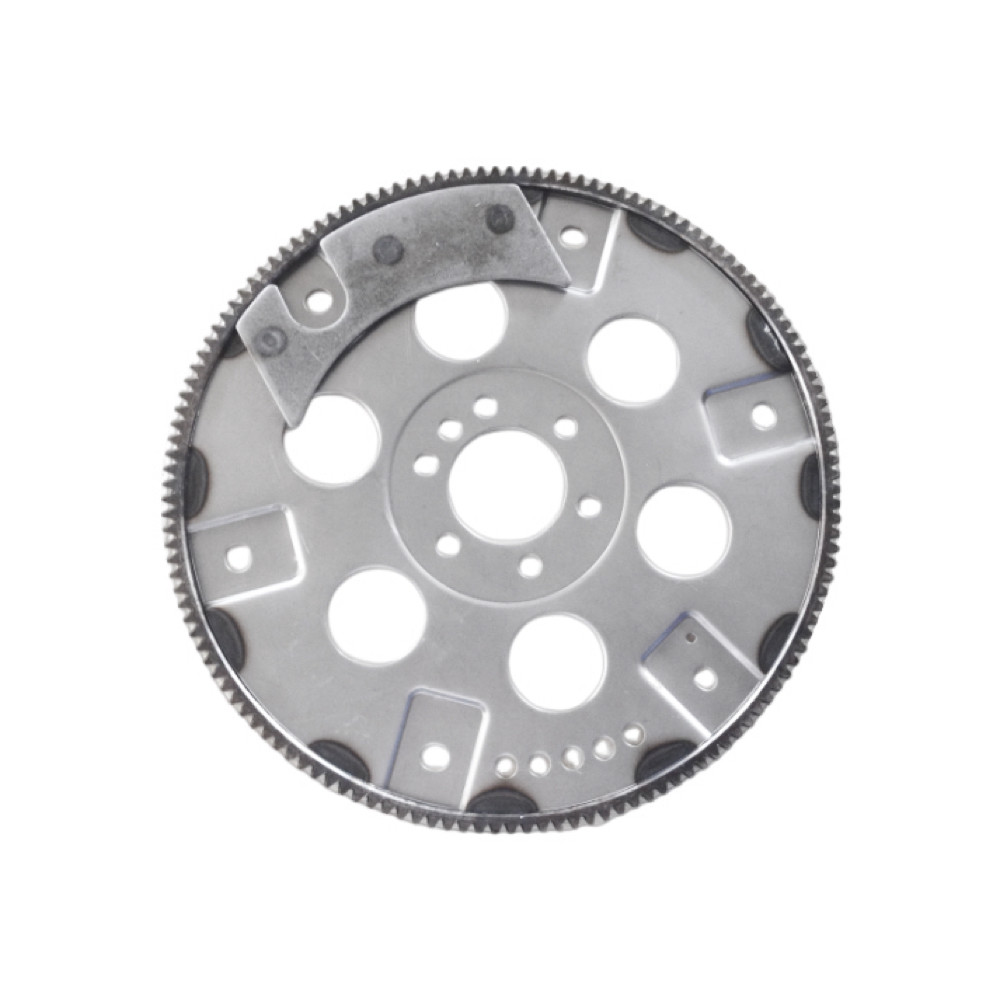

GM Stamping Flexible 139 Tooth Flexplate Disc 11.5mm Height

GM Stamping Flexible 139 Tooth Flexplate Disc 11.5mm Height
GM Stamping Flexible 139 Tooth Flexplate Disc 11.5mm Height GM Stamping Flexible 139 Tooth Flexplate Disc 11.5mm Height GM Stamping Flexible 139 Tooth Flexplate Disc 11.5mm Height GM Stamping Flexible 139 Tooth Flexplate Disc 11.5mm Height GM Stamping Flexible 139 Tooth Flexplate Disc 11.5mm Height GM Stamping Flexible 139 Tooth Flexplate Disc 11.5mm Height
Basic Information
Place of Origin: China
Model Number: GM stamping disc freewheel/flexible disc freewheel/139 teeth
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Standard Packaging
Payment Terms: L/C,T/T,etc.
Get Best Price Contact Now
OE No.: 7 Holes-Φ13 Φ250 139 Teeth GM0540541 Model: GM Stamping Disc Freewheel/flexible Disc Freewheel/139 Teeth
Height: 11.5 Teeth: 139
Outer Diameter: 359 Inner Diameter: 63
Highlight:

Flexible 139 Tooth Flexplate

,

GM 139 Tooth Flexplate

Description

Please click to view Flywheel alog!.pdf



1. The flywheel product adopts high-strength stamping plate, which greatly improves the structural strength of the flywheel body, and can achieve a high degree of light weight, which greatly improves the performance of the product. The ring gear part is made of standard 45# alloy steel, adopts high-frequency quenching process, and the hardness of the tooth part can reach 48-58HRC, which makes the product more heat-resistant, wear-resistant and durable.

2. Our company uses fully automatic CNC machine tools, machining centers, and dynamic balancing equipment in the processing process to ensure that the processing accuracy of the product is better, and it can reach the dimensional accuracy of the original car factory, so that the sound of the product is smaller and more stable when it is used. .

3. The inspection adopts 3-D Measuring/Metallurgical Micro-test/Hardness test/Tension test and other equipment to ensure that there will be no defective products in the factory.

4. Export products are made of high-strength five-layer A-grade cartons, painted with anti-rust oil on the outside, and covered with anti-rust sealed bags to ensure that the products will not be rusted due to transportation problems.



Principle

When the starter motor engages, it rotates the engine's crankshaft, and the flywheel's stored energy aids in the engine's ignition and startup.

The flywheel's rotational inertia helps maintain a steady idle speed by balancing the engine's rotational forces.



Details

Teeth  139
For Coupling Size(mm) /
Clutch Holes&Size (mm) 6-Φ12
Outer Diameter 359
Inner Diameter(mm) 63
Height 11.5
Pitch Cride (mm) 91
Clutch Pitch Cride(mm) 292



Crafts

Machining

GM Stamping Flexible 139 Tooth Flexplate Disc 11.5mm Height 0GM Stamping Flexible 139 Tooth Flexplate Disc 11.5mm Height 1

Drilling Injection Holes

GM Stamping Flexible 139 Tooth Flexplate Disc 11.5mm Height 2GM Stamping Flexible 139 Tooth Flexplate Disc 11.5mm Height 3

Dynamic Balance

GM Stamping Flexible 139 Tooth Flexplate Disc 11.5mm Height 4GM Stamping Flexible 139 Tooth Flexplate Disc 11.5mm Height 5

Mark

GM Stamping Flexible 139 Tooth Flexplate Disc 11.5mm Height 6

Package

GM Stamping Flexible 139 Tooth Flexplate Disc 11.5mm Height 7







Inspection

Tension Test

GM Stamping Flexible 139 Tooth Flexplate Disc 11.5mm Height 8GM Stamping Flexible 139 Tooth Flexplate Disc 11.5mm Height 9

Metallurgical Micro-Test

GM Stamping Flexible 139 Tooth Flexplate Disc 11.5mm Height 10GM Stamping Flexible 139 Tooth Flexplate Disc 11.5mm Height 11

Hardness Test

GM Stamping Flexible 139 Tooth Flexplate Disc 11.5mm Height 12GM Stamping Flexible 139 Tooth Flexplate Disc 11.5mm Height 13

3D Measuring

GM Stamping Flexible 139 Tooth Flexplate Disc 11.5mm Height 14GM Stamping Flexible 139 Tooth Flexplate Disc 11.5mm Height 15
