Place of Origin: | China |
---|---|
Model Number: | 3116 ,3126 |
Minimum Order Quantity: | Negotiation |
Price: | Negotiation |
Packaging Details: | Standard Packaging |
Payment Terms: | L/C,T/T,etc. |

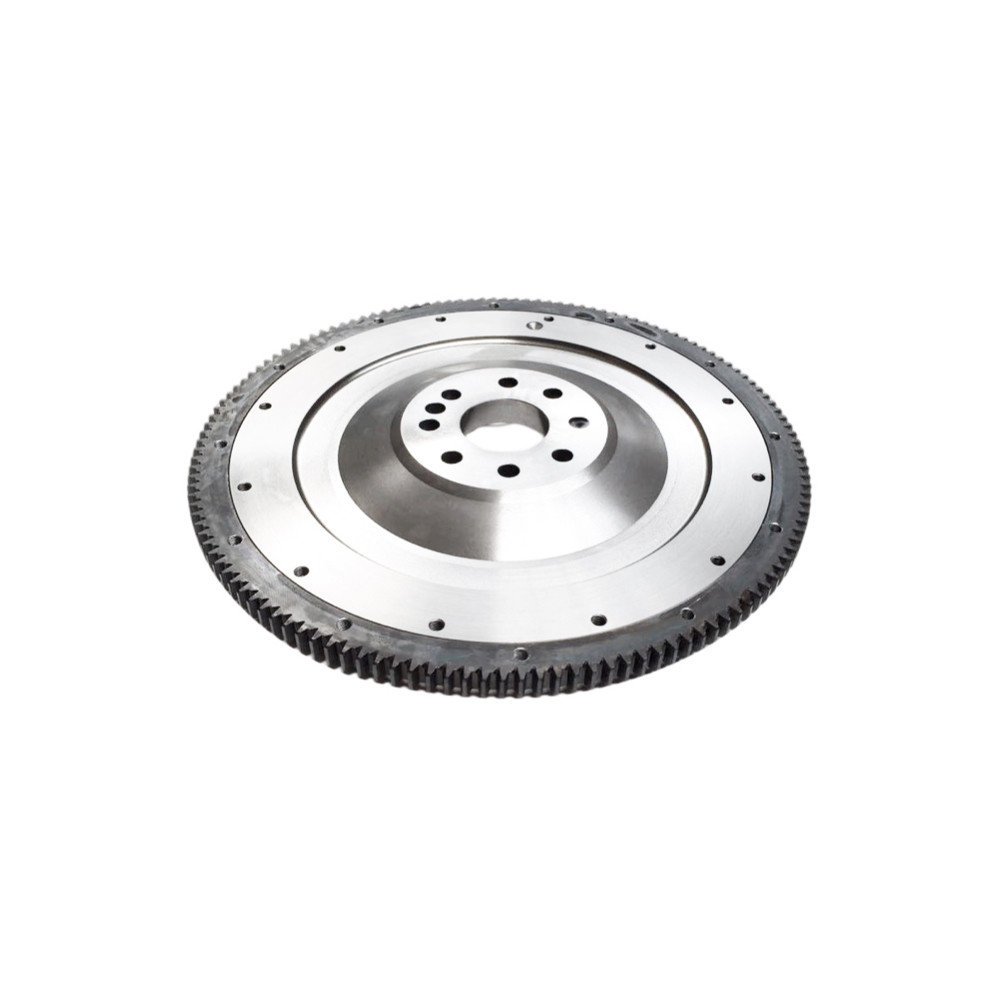

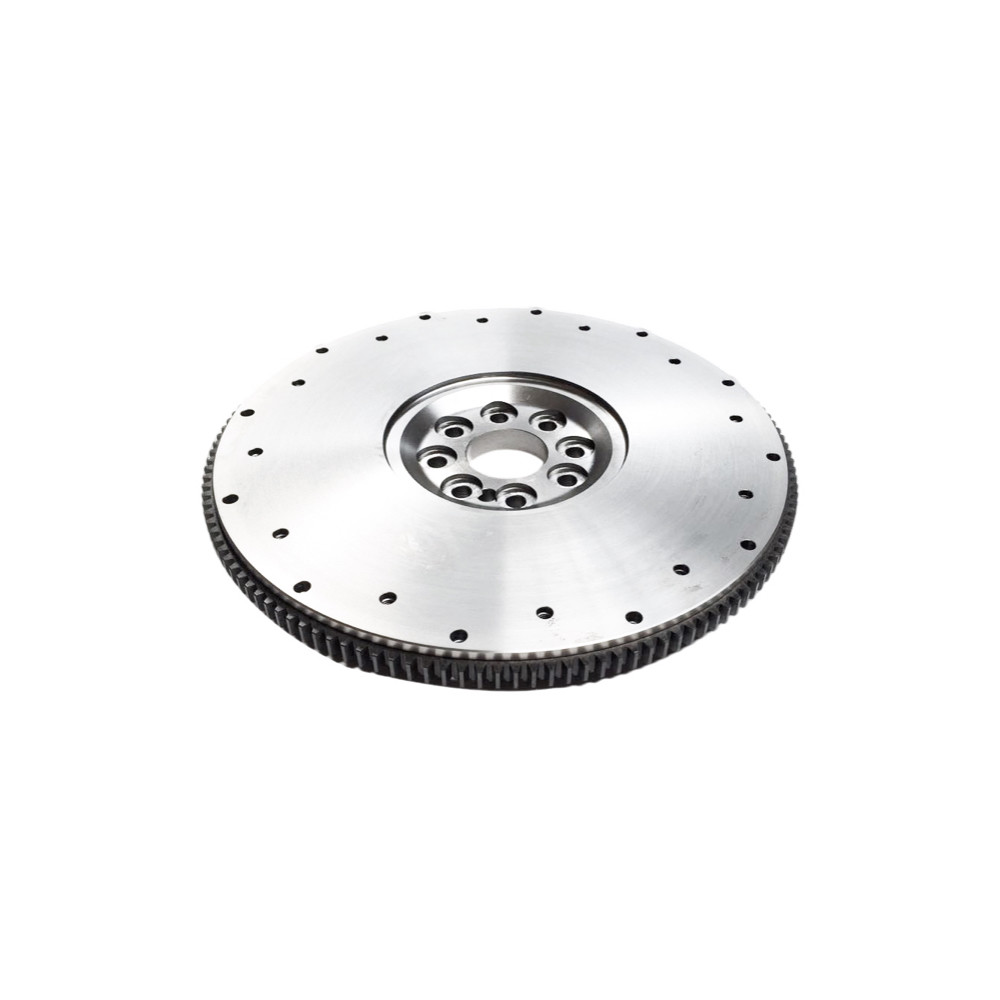

OE No.: | 1265875 | Model: | 3116 ,3126 |
---|---|---|---|
Height: | 38.3 | Teeth: | 134 |
Outer Diameter: | 430.5 | ||
High Light: | Engine 134 Tooth Flywheel,3116 134 Tooth Flywheel,1265875 |
Description
Please click to view Flywheel alog!.pdf
1. The flywheel product is made of standard HT250 material, the hardness of the matrix reaches 170-200HB, the ring gear part is made of standard 45# alloy steel, and the high-frequency quenching process is adopted. The hardness of the teeth can reach 48-58HRC, which makes the product more heat-resistant and wear-resistant. more durable.
2. Our company uses fully automatic CNC machine tools, machining centers, and dynamic balancing equipment in the processing process to ensure that the processing accuracy of the product is better, and it can reach the dimensional accuracy of the original car factory, so that the sound of the product is smaller and more stable when it is used. .
3. The inspection adopts 3-D Measuring/Metallurgical Micro-test/Hardness test/Tension test and other equipment to ensure that there will be no defective products in the factory.
4. Export products are made of high-strength five-layer A-grade cartons, painted with anti-rust oil on the outside, and covered with anti-rust sealed bags to ensure that the products will not be rusted due to transportation problems.
Advantage
Easy Maintenance and Replacement: The flywheel is accessible and serviceable, making maintenance and replacement straightforward, reducing downtime and costs.
Optimized Overall Performance: The flywheel's advantages, including improved balance, drivability, fuel efficiency, and durability, contribute to the overall performance and reliability of the vehicle's engine system.
Details
Teeth | 134 |
For Coupling Size(mm) | 340 |
Clutch Holes&Size (mm) | 12-Φ14.3 |
Outer Diameter | 430.5 |
Inner Diameter(mm) | 62 |
Height | 38.3 |
Pitch Cride (mm) | 105.65 |
Clutch Pitch Cride(mm) | 358.8/393.7 |
Crafts
Machining
Drilling Injection Holes
Dynamic Balance
Mark
Package
Inspection
Tension Test
Metallurgical Micro-Test
Hardness Test
3D Measuring
