Place of Origin: | China |
---|---|

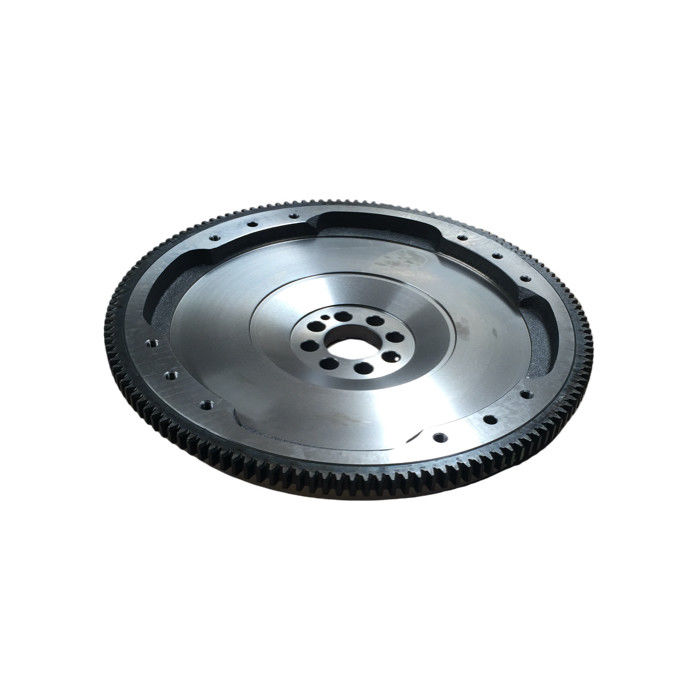

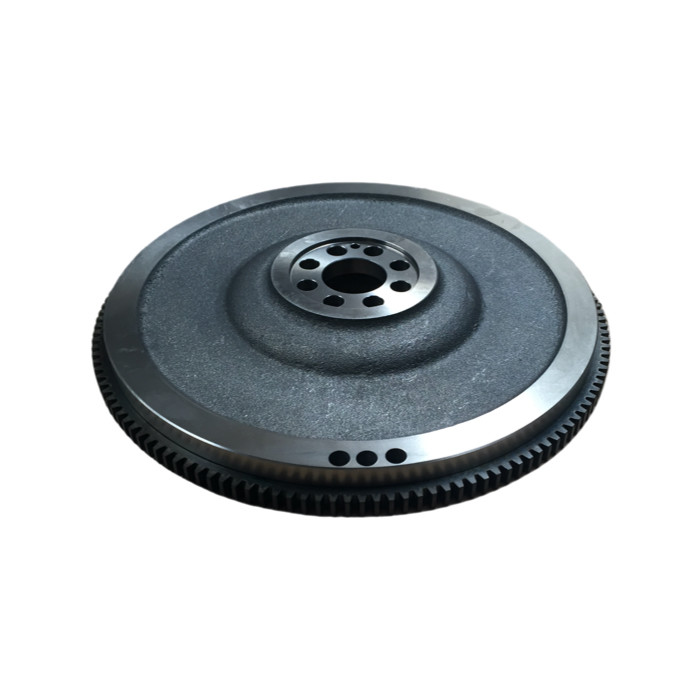

Model Number: | ISUZU/4HG1/138 teeth/cast iron flywheel/truck flywheel |
Minimum Order Quantity: | Negotiation |
Price: | Negotiation |
Packaging Details: | Standard Packaging |
Payment Terms: | L/C,T/T,etc. |
OE No.: | 8-97330-892-0 | Model: | ISUZU/4HG1/138 Teeth/cast Iron Flywheel/truck Flywheel |
---|---|---|---|
Height: | 55.5 | Material: | Cast Iron |
Teeth: | 138 | Outer Diameter: | 420 |
Highlight: | 4HG1 Truck Flywheel,Truck Flywheel IATF 16949,8-97330-892-0 |
Description
Please click to view Flywheel alog!.pdf
1. It is subject to high levels of stress and heat generated by the engine, requiring it to be made from durable materials capable of withstanding these conditions.
2. Our company uses fully automatic CNC machine tools, machining centers, and dynamic balancing equipment in the processing process to ensure that the processing accuracy of the product is better, and it can reach the dimensional accuracy of the original car factory, so that the sound of the product is smaller and more stable when it is used. .
3. The inspection adopts 3-D Measuring/Metallurgical Micro-test/Hardness test/Tension test and other equipment to ensure that there will be no defective products in the factory.
4. Export products are made of high-strength five-layer A-grade cartons, painted with anti-rust oil on the outside, and covered with anti-rust sealed bags to ensure that the products will not be rusted due to transportation problems.
Feature
It plays a critical role in the smooth operation of the clutch system, allowing for seamless gear changes and preventing clutch slippage.
The flywheel undergoes rigorous testing and quality control measures to ensure it meets industry standards and specifiions.
Details
Teeth | 138 |
For Coupling Size(mm) | 315 |
Clutch Holes&Size (mm) | 8*16.5mm |
Outer Diameter | 420 |
Inner Diameter(mm) | 52 |
Height | 55.5 |
Pitch Cride (mm) | 80 |
Clutch Pitch Cride(mm) | 350 |
Crafts
Machining
Drilling Injection Holes
Dynamic Balance
Mark
Package
Inspection
Tension Test
Metallurgical Micro-Test
Hardness Test
3D Measuring
